Volkswagen Ford Toyota Full HD Car DVR Camera With CMOS Imaging Sensor Snap In Design

Product Details:
Place of Origin: CHINA
Brand Name: ISUDAR
Certification: CE, ROHS
Model Number: CA1300UN0802
Payment & Shipping Terms:
Minimum Order Quantity: 4pcs
Price: negotiation
Packaging Details: In carton
Delivery Time: 3-4days
Payment Terms: T/T, Western Union
Supply Ability: 1000pcs/day

Detail Information

Item Type: Car Parking System Car Maker: VW,Hyundai,Honda,Opel,Toyota.....
Wire Or Wireless: Wired Material Type: ABS
Lens Material: Glass Degree: 170 Degree
High Light:

vehicle dvr camera

,

car video camera recorder

Product Description

8 LED 170 Wide Angle HD Car DVR Camera Rear view Camera Waterproof for Volkswagen Ford Toyota





Description :



1. Anti fog glass.
2. CMOS imaging sensor.
3. Support NTSC&PAL video system.
4. Snap-in design, it is easy to install.
5. High sensitivity and low power consumption.
6. Water-proof, shock-proof and anti-jamming functions.
7. It helps to avoid incidents and accidents abrasion well.
8. Extra-low illumination of 0.5 Lux for clear night vision.
9. Its simple and modest design and small size won't draw any attention.
10. This camera can give you a full sight of the back of your car when you are driving.
11. To protect your car from collision with invisible obstacle, choose a high definition and good quality camera as ours.
12. Perfect solution to get rid of that poor rear view visibility on your car that has no rear-view mirror or poor rear vision.



Installation:



Use the hole driller to mount the camera at the back of the car (on the license plate back window or other suitable place)
Connect the power of the camera to your reverse lights - red wire to positive and black wire to negative.
Connect the video cable of the camera to the extension cord.
Connect the extension cable to the car monitor.
You will see the images when your car is in reverse shift.

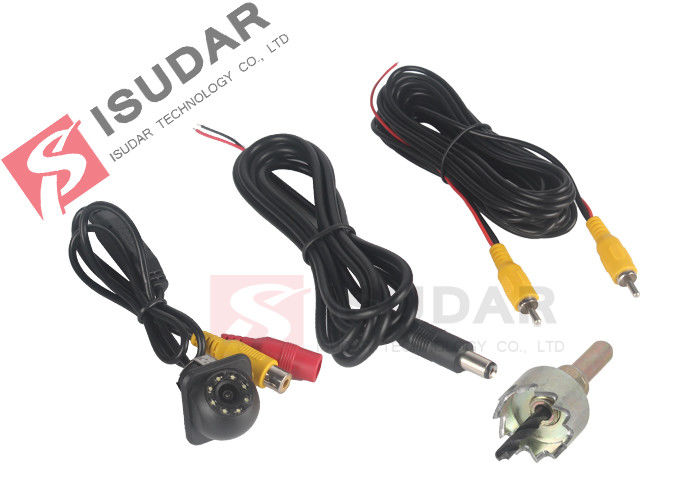

Package Included:



1 x Drill Hole Style Car Rear View Camera
1 x Video Cable
1 x Power Cable
1 x Drill



Image sensor PC7070
Effective pixels 720*480 pixel
Video output 1.0VP-P,75 OHM
Scan System 2:1 interlace
Minimum illumination 0.01 Lux/F=1.2(0 Lux with IR on)
Operating Temperature -20℃~+75℃,RH95% MAX
Storage temperature -40℃ - 85℃,RH 95% MAX
TV System PAL/NTSC
Light perception area 3.584mm*2.688mm
Gamma coefficient 0.45
View Angle Level: 135° / Diagonal 170°
Horizontal Resolution 480 TV lines
Electronic Shutter 1-1/10000
White balance Auto
Waterproof IP67/68
Power supply DC 12V
