Guide Line Car Trunk Handle Car Reverse Camera Audi Backup Camera ABS Type

Guide Line Car Trunk Handle Car Reverse Camera Audi Backup Camera ABS Type

    • Guide Line Car Trunk Handle Car Reverse Camera Audi Backup Camera ABS Type
    • Guide Line Car Trunk Handle Car Reverse Camera Audi Backup Camera ABS Type
    • Guide Line Car Trunk Handle Car Reverse Camera Audi Backup Camera ABS Type
    • Guide Line Car Trunk Handle Car Reverse Camera Audi Backup Camera ABS Type
  • Guide Line Car Trunk Handle Car Reverse Camera Audi Backup Camera ABS Type

    Product Details:

    Place of Origin: CHINA
    Brand Name: ISUDAR
    Certification: CE, ROHS
    Model Number: CA1300VW1120

    Payment & Shipping Terms:

    Minimum Order Quantity: 4pcs
    Price: negotiation
    Packaging Details: In carton
    Delivery Time: 3-4days
    Payment Terms: T/T, Western Union
    Supply Ability: 1000pcs/day
    Contact Now
    Detailed Product Description
    Item Type: Car Parking Camera Car Maker: AUDI
    Wire Or Wireless: Wired Material Type: ABS
    Lens Material: Glass Degree: 170 Degree

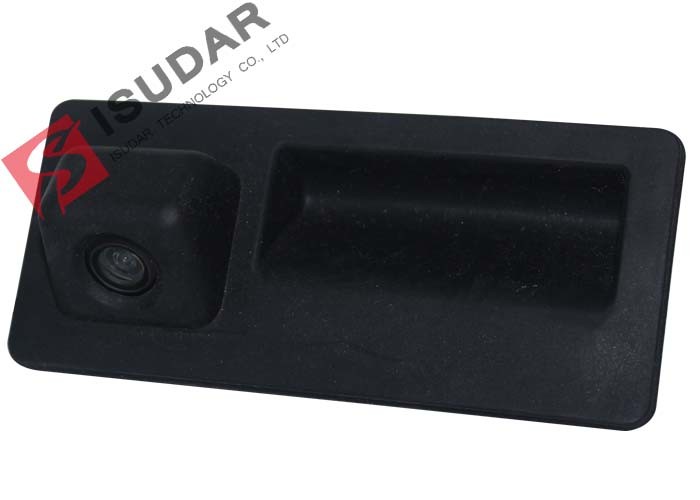

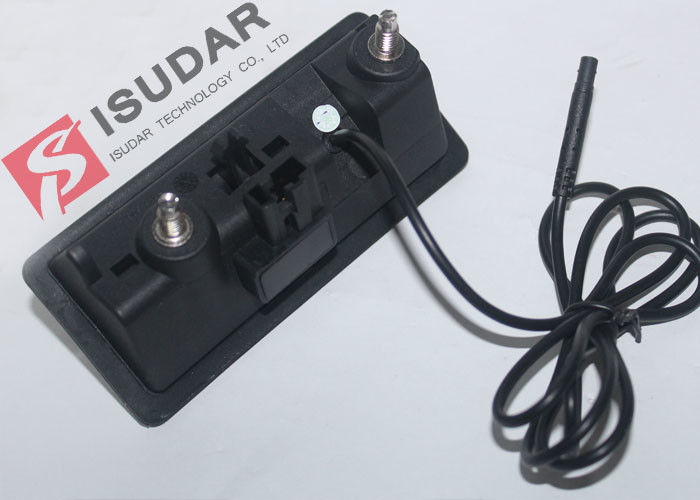

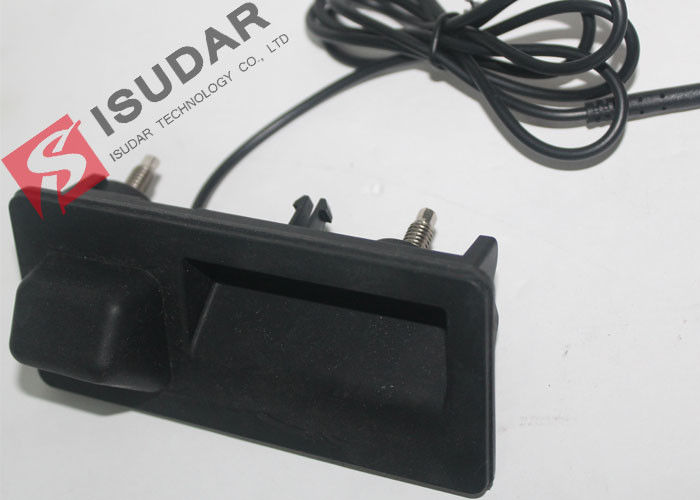

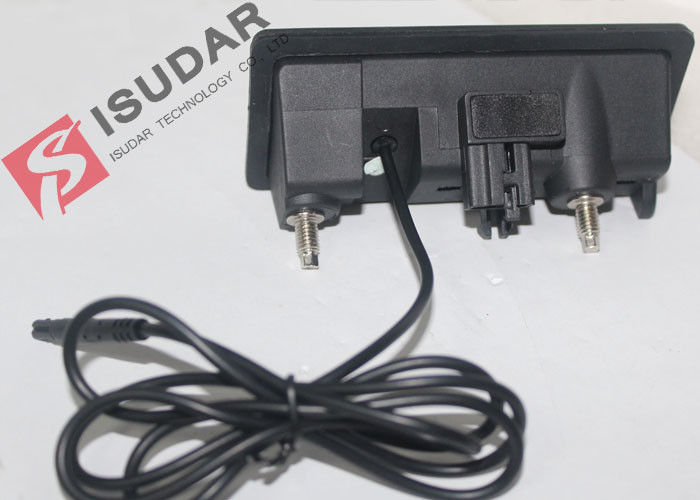

    Car Trunk Handle Rear View HD Camera for Audi A4 A5 S5 Q3 Q5 VW Tiguan with Trajectory Guide Line





    Parameters:


    Power: 5W
    Volatge: DC12V
    AGC: Auto
    Resolution: 648*480
    TV System: NTSC/PAL
    White balance: Auto
    View Angle: 170 Degrees
    Gamma coefficients: 0.45
    Backlight Compensation: Auto
    Horizontal Resolution: 480 TV
    SNR(Singal to Noise Ratio): more than 48 DB
    Synchronization : Internal synchronization
    Video Output: RCA Interface, 1.0Vp-p, 75 Ohm-p
    Minimum Illumination: 1 Lux F=1.2(2 Lux with IR on)
    Current Consumption: 50-60mA, max 130mA with IR on
    Working Temperature: -20 ° C~70 ° C, humidity RH95% Max
    Storage Temperature:-40 ° C ~ 80 ° C, humidity RH95% Max



    Package include :


    1 x CCD Sony Chip Car Rear View Camera
    1 x 6M video cables & Power cables with Power Relay
    1 x user manual



    Image sensor PC7070
    Effective pixels 720*480 pixel
    Video output 1.0VP-P,75 OHM
    Scan System 2:1 interlace
    Minimum illumination 0.01 Lux/F=1.2(0 Lux with IR on)
    Operating Temperature -20℃~+75℃,RH95% MAX
    Storage temperature -40℃ - 85℃,RH 95% MAX
    TV System PAL/NTSC
    Light perception area 3.584mm*2.688mm
    Gamma coefficient 0.45
    View Angle Level: 135° / Diagonal 170°
    Horizontal Resolution 480 TV lines
    Electronic Shutter 1-1/10000
    White balance Auto
    Waterproof IP67/68
    Power supply DC 12V

    Guide Line Car Trunk Handle Car Reverse Camera Audi Backup Camera ABS Type



    Guide Line Car Trunk Handle Car Reverse Camera Audi Backup Camera ABS Type
