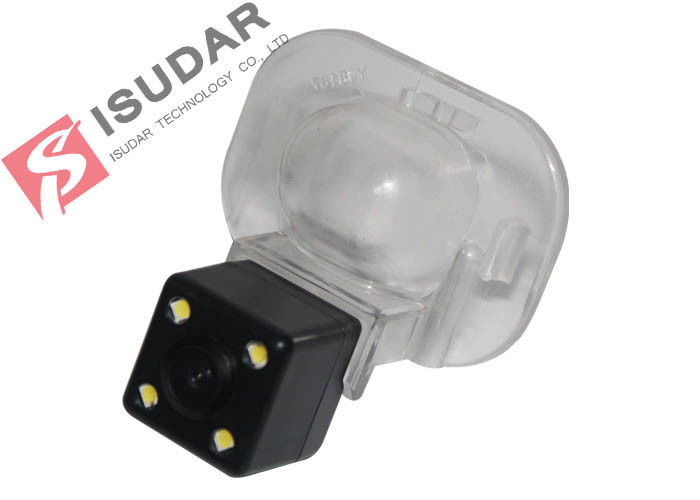

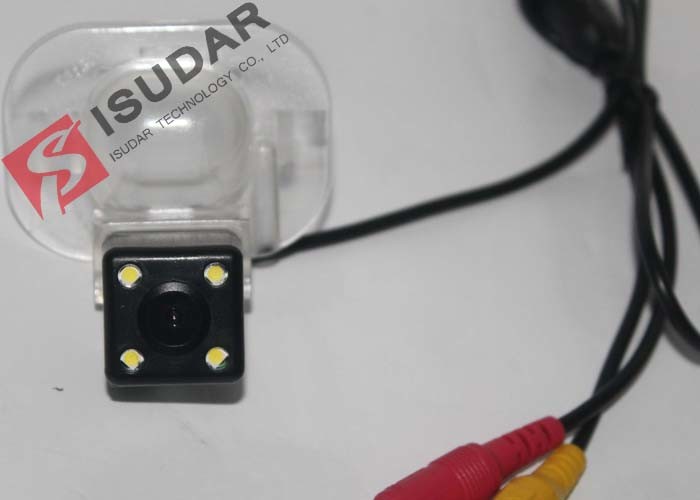

Color Night Vision Car Reverse Camera For Hyundai Verna / Solari IP67 Waterproof

Color Night Vision Car Reverse Camera For Hyundai Verna / Solari IP67 Waterproof

    • Color Night Vision Car Reverse Camera For Hyundai Verna / Solari IP67 Waterproof
    • Color Night Vision Car Reverse Camera For Hyundai Verna / Solari IP67 Waterproof
    • Color Night Vision Car Reverse Camera For Hyundai Verna / Solari IP67 Waterproof
  • Color Night Vision Car Reverse Camera For Hyundai Verna / Solari IP67 Waterproof

    Product Details:

    Place of Origin: CHINA
    Brand Name: ISUDAR
    Certification: CE, ROHS
    Model Number: CA1300HY0011

    Payment & Shipping Terms:

    Minimum Order Quantity: 4pcs
    Price: negotiation
    Packaging Details: In carton
    Delivery Time: 3-4days
    Payment Terms: T/T, Western Union
    Supply Ability: 1000pcs/day
    Contact Now
    Detailed Product Description
    Item Type: Car Backup Camera Car Maker: Hyundai
    Wire Or Wireless: Wired Material Type: ABS
    Lens Material: Glass Degree: 170 Degree

    High Quality HD 4 LED Car Parking Reversing Backup Camera for Hyundai Verna / Solari





    Technical Parameters:


    Image sensors: HD Color COMS PC3089
    Resolution(TV Lines): 500
    Effective pixels: 756 * 504
    TV standard: NTSC / PAL (Optional)
    Lens angle (Deg.): 170°
    Minimum illumination: 0.3 Lux
    Video output: 1.0Vp-p, 75Ohm, RCA male
    AGC / BLC / White balance: Auto
    Power supply: DC 12V
    Power: <1W
    Waterproof grade: IP67
    Operating temperature (Deg.C): -30~+70(RH95%MAX.)



    Features:


    1. Special design to replace the original car license plate light, perfect match, no damage to the installation.
    2. Low light perfect night vision.
    3. Can help avoid accidents, durability is good.
    4. Switching power supply Low power circuit design, small heat, stable work.
    5. Waterproof rating IP67.
    6. 170 degrees large wide angle.
    7. Each of our products need to pass the vibration test, aging treatment, waterproof test, high and low temperature test UV test, air tightness test and a series of vehicle standard test.



    Technical Parameters:


    Image sensors: HD Color COMS PC3089
    Resolution(TV Lines): 500
    Effective pixels: 756 * 504
    TV standard: NTSC / PAL (Optional)
    Lens angle (Deg.): 170°
    Minimum illumination: 0.3 Lux
    Video output: 1.0Vp-p, 75Ohm, RCA male
    AGC / BLC / White balance: Auto
    Power supply: DC 12V
    Power: <1W
    Waterproof grade: IP67
    Operating temperature (Deg.C): -30~+70(RH95%MAX.)



    Image sensor PC7070
    Effective pixels 720*480 pixel
    Video output 1.0VP-P,75 OHM
    Scan System 2:1 interlace
    Minimum illumination 0.01 Lux/F=1.2(0 Lux with IR on)
    Operating Temperature -20℃~+75℃,RH95% MAX
    Storage temperature -40℃ - 85℃,RH 95% MAX
    TV System PAL/NTSC
    Light perception area 3.584mm*2.688mm
    Gamma coefficient 0.45
    View Angle Level: 135° / Diagonal 170°
    Horizontal Resolution 480 TV lines
    Electronic Shutter 1-1/10000
    White balance Auto
    Waterproof IP67/68
    Power supply DC 12V
