Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | ISUDAR |
| Certification: | CE,ROHS |
| Model Number: | NA01W6SS0703 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 4pcs |
| Price: | negotiation |
| Packaging Details: | In carton |
| Delivery Time: | 2-3 days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 300pcs/day |
|
Detail Information |
|||
| Car Maker: | Ssangyong | Resolution:: | 800*480 |
|---|---|---|---|
| Operating System: | Windows Ce | Upport 1080P Video: | Support |
| Support 3G USB: | Support | Support Ipod & Iphone 4s, 5, 6, 6 Plus:: | Support |
| High Light: | double din touchscreen head unit,double din dvd car stereo |
||
Product Description

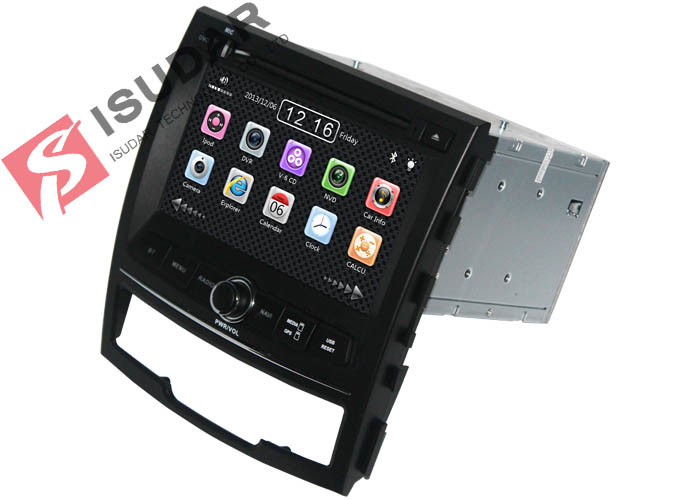

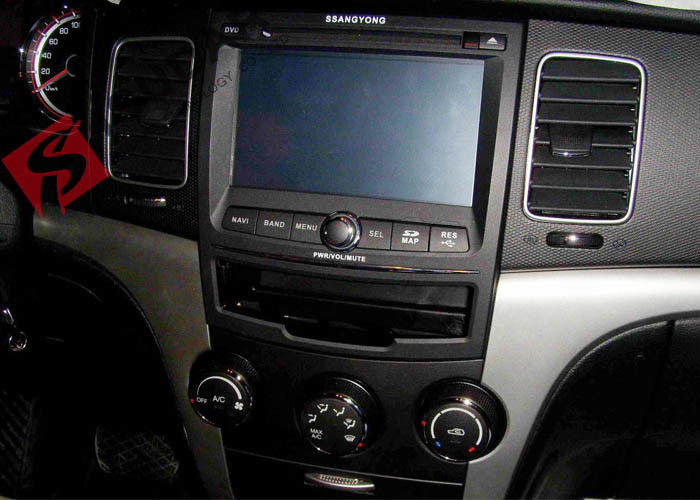

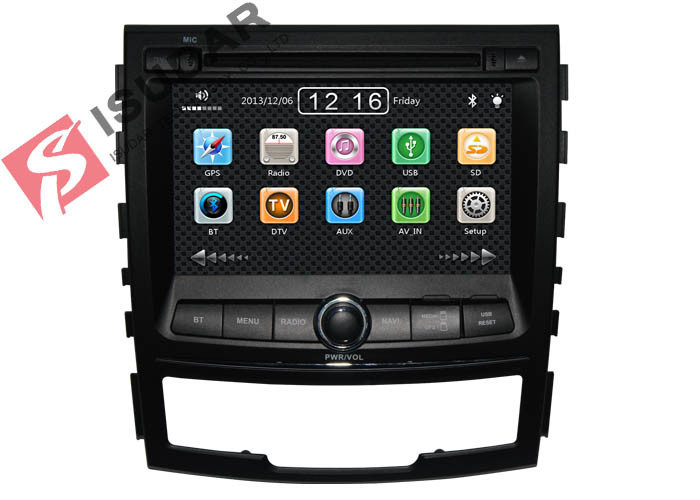

Two Din 7 Inch Capacitive Screen Car DVD Player For Ssangyong Korando 2010-2013 Radio GPS Bluetooth 1080P Navigation FM Map
Suit for :
Ssangyong Korando 2010-2013
Features :
800MHZ CPU, 512MHZ RAM, With faster speed, more stable system.
HD full 1080p format video play:
1080p Hd digital video broadcase
Support playing DVD, USB and SD card etc
Support MPEG, AVI, RM, FLV, ASF/WMV, MP4, MKV, OGM, DAT and VOB video formats
DVD speed reading
Support Ipod/Iphone 4/4s/5/5s connect
Built-in iPod/iPone4/4s/5/5s Audio decode IC
This unit will show te playlist and songs from connected device on the DVD screen, when it's connected through the original USB data cable
You can control Audio play of the connected device from the screen
Support Audio input only, don't support video input
CapacitiveTouch screen
More speedly and smoothly touch feeling than Resistance screen.
1. Built-in Radio Tuner (RDS Enabled)
(18 FM and 12 AM stations Preset)
2. Built-in USB & SD Port
32GB (the max files in the USB & SD card should be within 4GB)
3. AUX IN & AV OUT
Supports System: NTSC, PAL
4. 4 *45W
Pop, Rock, Jazz, Classic, Customize, Cinema, Soft, Heavy Metal, Standard
5. 800*480HD Resolution
Resolution: 800*480
6. Supports Multiple Languages
Simplified Chinese, English, Traditional Chinese, Russian, French, Spanish, German, Portuguese, Thai, Arabic, Polish and Japanese.
| Name | Parameters | |
|
Product |
Digital TV | Option |
| Ipod | Default | |
| Handwriting input | Default | |
| CD/DVD Disc playback | Default | |
| 3G | Default(need 3G USB dongle to connect) | |
| Game function | Default | |
| USB/SD | Default(Audio/Video) | |
| Bluetooth | Default(support HFP,HSP,FTP,OBE,OPP,SPP,A2DP) | |
| Bluetooth phone | Default | |
| Bluetooth phone book | Default | |
| Bluetooth music | Default | |
| Music player | Default(Support lyrics display) | |
| 1080P HD Video playback | Default | |
| Front camera | Default | |
| Virtual 10-Disc | Default | |
| Radio | Default(European/Russia/Japan/America and so on) | |
| RDS | Default | |
| EQ to adjust | Default | |
| GPS Navigation | Default(Support IGO/Navitel etc) | |
| Multiple language | Default | |
| Positioning system | Support | |
| Cold start reversing | Default | |
| Rear view camera reversing | Default | |
|
Hardware parameters |
Voltage | 10.5-15.5V |
| Current | <3MA | |
| Operating temperature | -30 degrees to 80 degrees | |
| Platform | Windows CE 6.0 | |
| Dominant frequency | 800MHZ | |
| RAM | DDR 512MB | |
| Pixels | 800*480 | |
| Touch screen | Capacitive | |
| MCU | MN101EF51A | |
| DVD Chip | Sunplus SPHE820VGQ | |
| Bareheaded | Sanyo bareheaded | |
| Navigation Chip | MT3336N | |
| Radio Chip | SI4754 | |
| Bluetooth Chip | MT6622N | |
| Amplifier function Chip | TDA7388 | |
| TV mode | CMMB/ISDB/DVB-T/DVB-T2/ATSC | |
|
Input output port |
Fat format mobile hard-disk | Support |
| USB device | Support | |
| TF/SD card | MAX 32 GB | |
| Video input | 1 Route | |
| Audio input | 2 Route | |
| Video output | 2 Route | |
| Front video input | 1 Route | |
| Back video output | 1 Route | |
| Audio output | 4 Route | |
| Intermediate output | 1 Route | |
| Subwoofer output | 1 Route |
