Mini CCD 360 Degree Universal Car DVR Camera Car Front Camera Mirror Image

Product Details:
Place of Origin: CHINA
Brand Name: ISUDAR
Certification: CE, ROHS
Model Number: CA1500UN0004
Payment & Shipping Terms:
Minimum Order Quantity: 4pcs
Price: negotiation
Packaging Details: In carton
Delivery Time: 3-4days
Payment Terms: T/T, Western Union
Supply Ability: 1000pcs/day

Detail Information

Item Type: Car Reverse Camera Car Maker: Universal
Wire Or Wireless: Wired Material Type: ABS
Lens Material: Glass Degree: 170 Degree
High Light:

hd dvr dash cam

,

vehicle dvr camera

Product Description

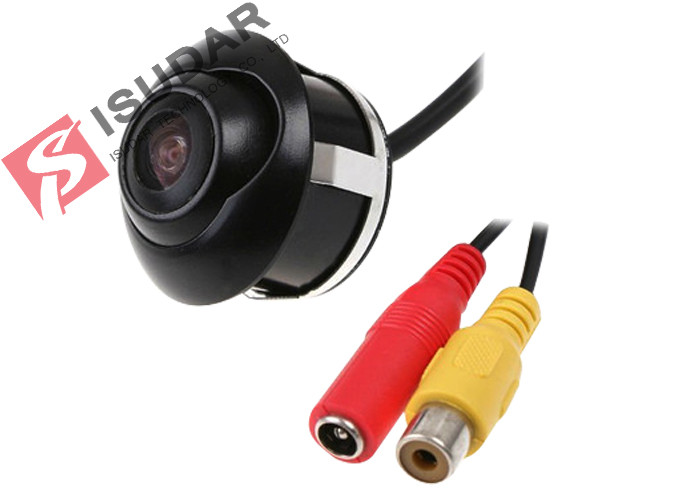

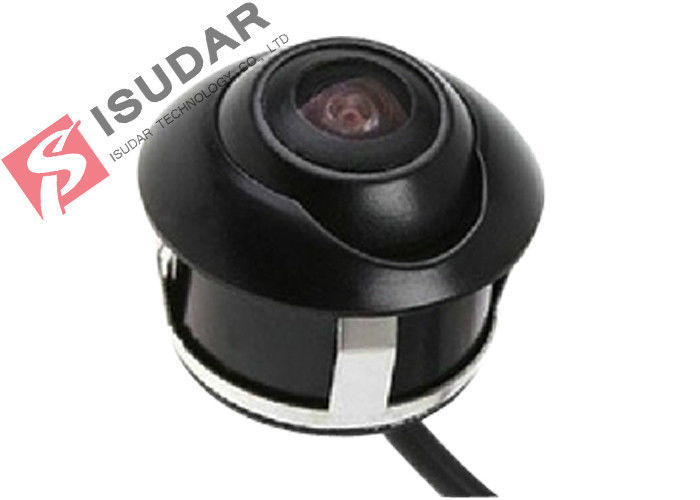

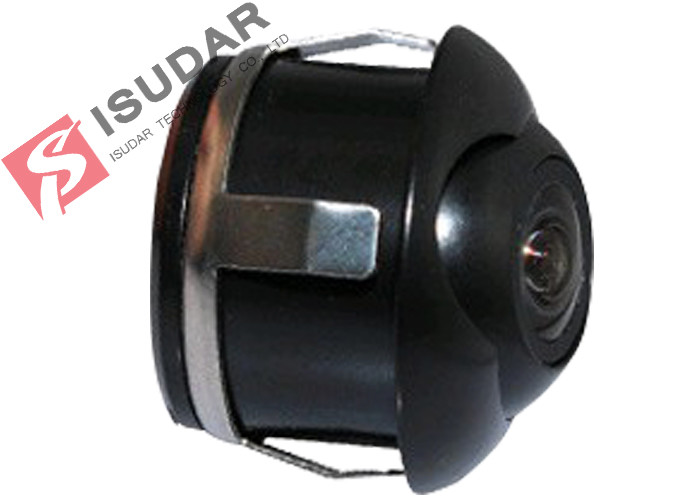

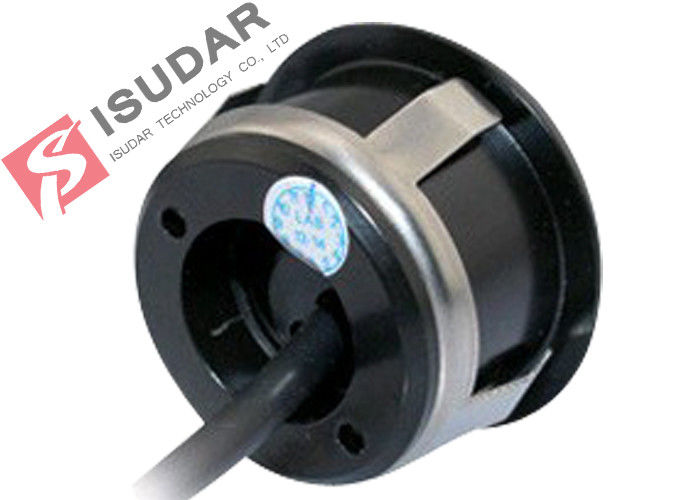

Mini CCD 360 Degree Car Rear View Camera Front Side View Backup Camera with Multi-function Switcher Cable



This Color CCD Car Front/Rear Camera is a new and never used high quality color camera. With High-definition wide viewing angles and good waterproof functions, help reduce incidents and accident. Bid it, you cannot get a better product at this price.




Description:

This Color CCD Car Front/Rear Camera is a new and never used high quality color camera. With High-definition wide viewing angles and good waterproof functions, help reduce incidents and accident. Bid it, you cannot get a better product at this price.

Features:
Anti fog glass.
CCD imaging sensor.
Support NTSC / PAL video system.
High grade of waterproofing: IP68.
High-definition and 150 degree wide viewing angle.
Applicable to variety of vehicles: car, truck, RV, etc.
Easy to install.
Its simple and modest design and small size won't draw any attention.
It helps to avoid incidents and accidents abrasion well.

Specification:


Image Sensor: CCD 3030
TV system: NTSC
Horizontal Resolution: 480 TV lines
Effective Pixels: PAL:628(H) * 582(V) NTSC:510(H) * 492(V)
Lens: 13.5mm
View Angle: 150 degree
S/N Ratio: >48dB
Electronic Shutter: 1/50 to 1/100,000 seconds, 1/60 to 1/100,000 seconds
Video Output: 1.0Vpp, 75Ohm
White Balance: Auto
Power: DC 12V
Water-proof: IP68
Video Cable Length: 6m
Power Supply Cable Length: 1.5m



Image sensor PC7070
Effective pixels 720*480 pixel
Video output 1.0VP-P,75 OHM
Scan System 2:1 interlace
Minimum illumination 0.01 Lux/F=1.2(0 Lux with IR on)
Operating Temperature -20℃~+75℃,RH95% MAX
Storage temperature -40℃ - 85℃,RH 95% MAX
TV System PAL/NTSC
Light perception area 3.584mm*2.688mm
Gamma coefficient 0.45
View Angle Level: 135° / Diagonal 170°
Horizontal Resolution 480 TV lines
Electronic Shutter 1-1/10000
White balance Auto
Waterproof IP67/68
Power supply DC 12V
