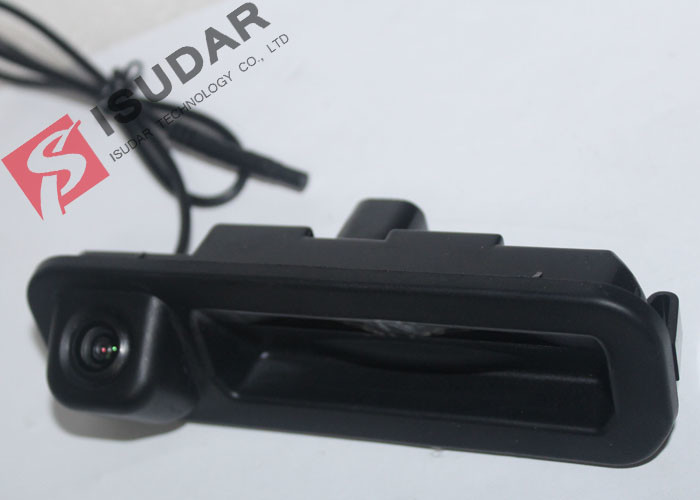

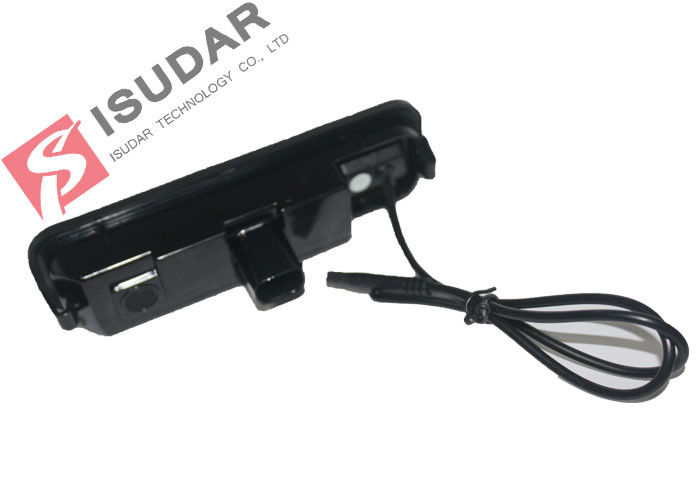

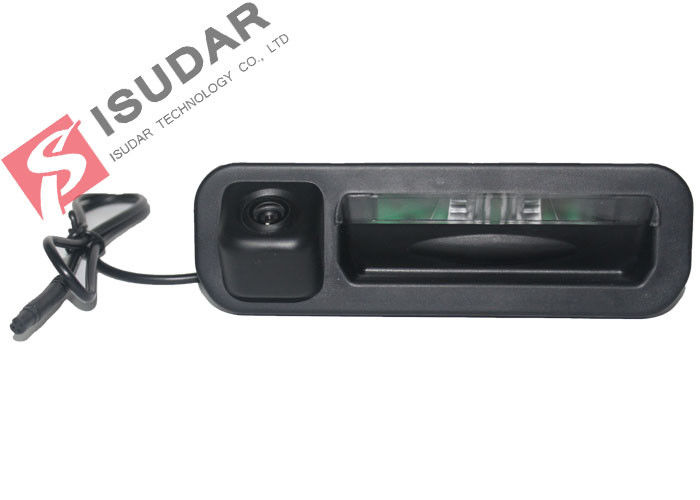

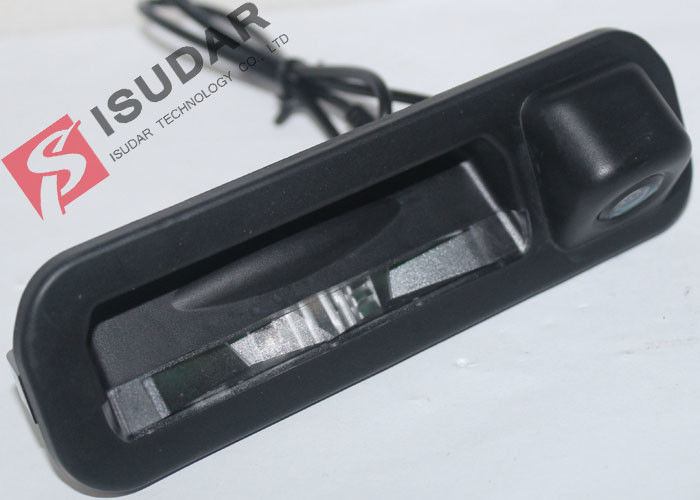

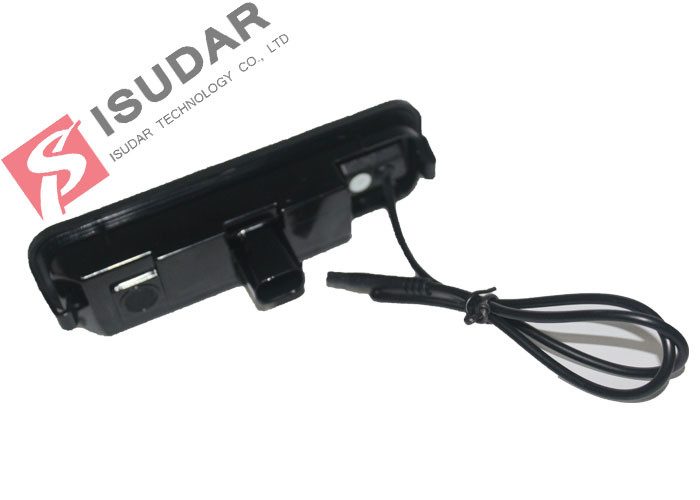

Car Trunk Handle Automotive Rear View Camera , Ford Focus Reversing Camera

Product Details:
Place of Origin: CHINA
Brand Name: ISUDAR
Certification: CE, ROHS
Model Number: CA1300BM1121
Payment & Shipping Terms:
Minimum Order Quantity: 4pcs
Price: negotiation
Packaging Details: In carton
Delivery Time: 3-4days
Payment Terms: T/T, Western Union
Supply Ability: 1000pcs/day

Detail Information

Item Type: Car Parking Camera Car Maker: BMW
Wire Or Wireless: Wired Material Type: ABS
Lens Material: Glass Degree: 170 Degree
High Light:

vehicle backup camera

,

night vision backup camera

Product Description

Waterproof Night Vision Car Rear View Trunk Handle Camera for Ford Focus 2012-2015 Focus 2 Focus 3 with LED





Parameters:


Power: 5W
Volatge: DC12V
AGC: Auto
Resolution: 648*480
TV System: NTSC/PAL
White balance: Auto
View Angle: 170 Degrees
Gamma coefficients: 0.45
Backlight Compensation: Auto
Horizontal Resolution: 480 TV
SNR(Singal to Noise Ratio): more than 48 DB
Synchronization : Internal synchronization
Video Output: RCA Interface, 1.0Vp-p, 75 Ohm-p
Minimum Illumination: 1 Lux F=1.2(2 Lux with IR on)
Current Consumption: 50-60mA, max 130mA with IR on
Working Temperature: -20 ° C~70 ° C, humidity RH95% Max
Storage Temperature:-40 ° C ~ 80 ° C, humidity RH95% Max



Package include :


1 x CCD Sony Chip Car Rear View Camera
1 x 6M video cables & Power cables with Power Relay
1 x user manual



Image sensor PC7070
Effective pixels 720*480 pixel
Video output 1.0VP-P,75 OHM
Scan System 2:1 interlace
Minimum illumination 0.01 Lux/F=1.2(0 Lux with IR on)
Operating Temperature -20℃~+75℃,RH95% MAX
Storage temperature -40℃ - 85℃,RH 95% MAX
TV System PAL/NTSC
Light perception area 3.584mm*2.688mm
Gamma coefficient 0.45
View Angle Level: 135° / Diagonal 170°
Horizontal Resolution 480 TV lines
Electronic Shutter 1-1/10000
White balance Auto
Waterproof IP67/68
Power supply DC 12V
