Product Details:
|
|
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | ISUDAR |
| Certification: | CE, ROHS |
| Model Number: | CA1300HY0011 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 4pcs |
| Price: | negotiation |
| Packaging Details: | In carton |
| Delivery Time: | 3-4days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000pcs/day |
|
Detail Information |
|||
| Item Type: | Car Backup Camera | Car Maker: | Hyundai |
|---|---|---|---|
| Wire Or Wireless: | Wired | Material Type: | ABS |
| Lens Material: | Glass | Degree: | 170 Degree |
| High Light: | vehicle backup camera,rear view parking camera |
||
Product Description

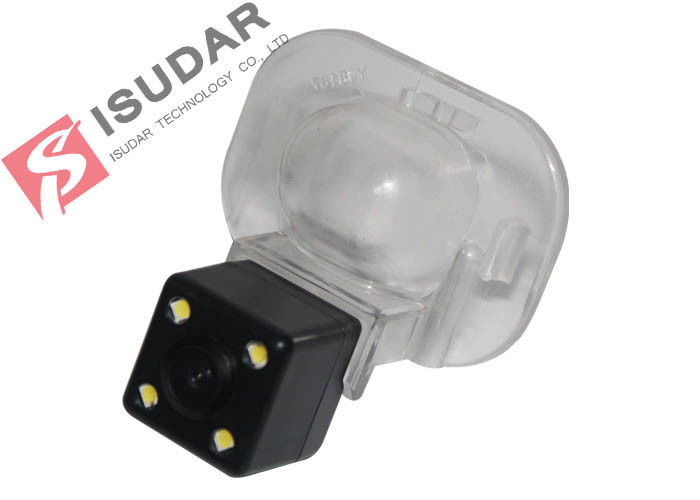

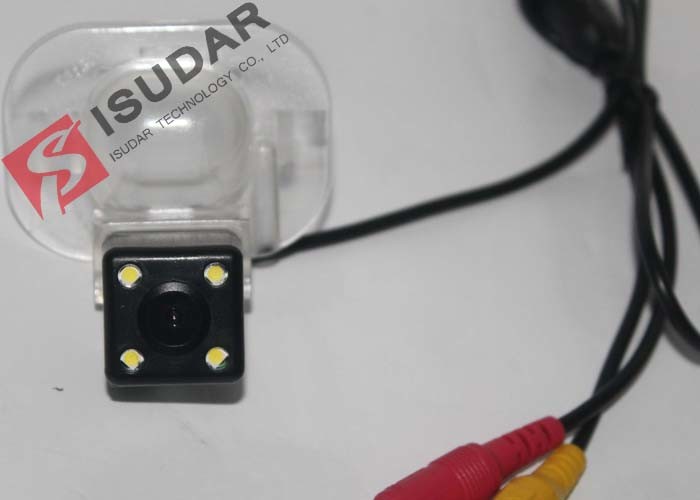

High Quality HD 4 LED Car Parking Reversing Backup Camera for Hyundai Verna / Solari
Technical Parameters:
Image sensors: HD Color COMS PC3089
Resolution(TV Lines): 500
Effective pixels: 756 * 504
TV standard: NTSC / PAL (Optional)
Lens angle (Deg.): 170°
Minimum illumination: 0.3 Lux
Video output: 1.0Vp-p, 75Ohm, RCA male
AGC / BLC / White balance: Auto
Power supply: DC 12V
Power: <1W
Waterproof grade: IP67
Operating temperature (Deg.C): -30~+70(RH95%MAX.)
Features:
1. Special design to replace the original car license plate light, perfect match, no damage to the installation.
2. Low light perfect night vision.
3. Can help avoid accidents, durability is good.
4. Switching power supply Low power circuit design, small heat, stable work.
5. Waterproof rating IP67.
6. 170 degrees large wide angle.
7. Each of our products need to pass the vibration test, aging treatment, waterproof test, high and low temperature test UV test, air tightness test and a series of vehicle standard test.
Technical Parameters:
Image sensors: HD Color COMS PC3089
Resolution(TV Lines): 500
Effective pixels: 756 * 504
TV standard: NTSC / PAL (Optional)
Lens angle (Deg.): 170°
Minimum illumination: 0.3 Lux
Video output: 1.0Vp-p, 75Ohm, RCA male
AGC / BLC / White balance: Auto
Power supply: DC 12V
Power: <1W
Waterproof grade: IP67
Operating temperature (Deg.C): -30~+70(RH95%MAX.)
| Image sensor | PC7070 |
| Effective pixels | 720*480 pixel |
| Video output | 1.0VP-P,75 OHM |
| Scan System | 2:1 interlace |
| Minimum illumination | 0.01 Lux/F=1.2(0 Lux with IR on) |
| Operating Temperature | -20℃～+75℃,RH95% MAX |
| Storage temperature | -40℃ - 85℃,RH 95% MAX |
| TV System | PAL/NTSC |
| Light perception area | 3.584mm*2.688mm |
| Gamma coefficient | 0.45 |
| View Angle | Level: 135° / Diagonal 170° |
| Horizontal Resolution | 480 TV lines |
| Electronic Shutter | 1-1/10000 |
| White balance | Auto |
| Waterproof | IP67/68 |
| Power supply | DC 12V |
