Product Details:
|
|
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | ISUDAR |
| Certification: | CE ,ROHS |
| Model Number: | NA04A7VW0708 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 4pcs |
| Price: | negotiation |
| Packaging Details: | In carton |
| Delivery Time: | 3-4days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 300pcs/day |
|
Detail Information |
|||
| Car Model: | VW Touareg | Screen Size: | 7 Inch |
|---|---|---|---|
| OS: | Android 7.1.1 | CPU: | Quad-Core Cortex A9 RK3188 1.6G |
| Highlight: | volkswagen dvd player,volkswagen touch screen multimedia player |
||
Product Description

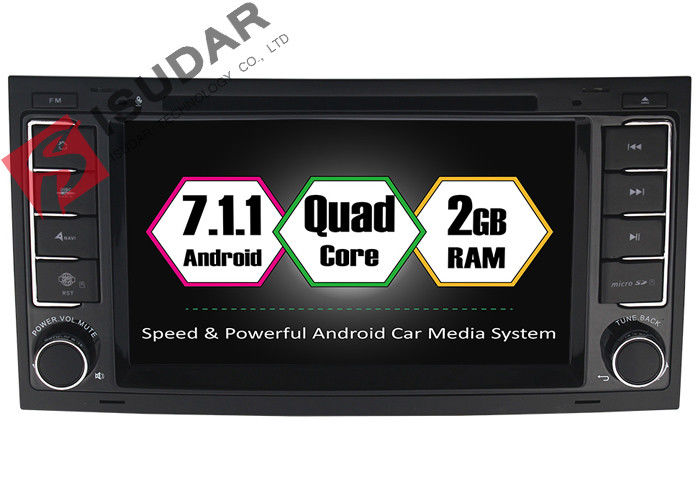

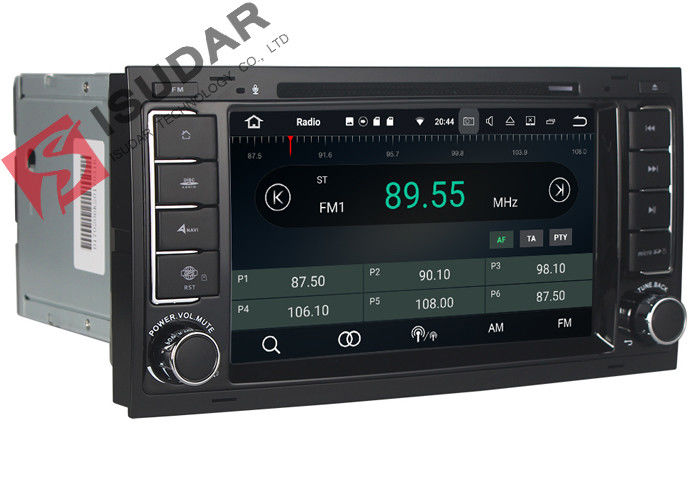

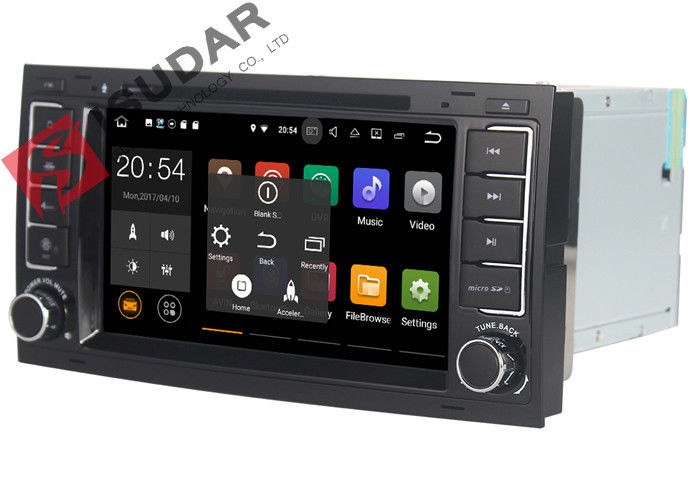

Android 7.1.1 Two Din 7 Inch Car DVD Player For VW/Volkswagen/Touareg/Transporter T5 RAM 2G WIFI GPS Navigation Radio FM
Suit for :
VW/Touareg 2004-2011
VW/Transporter T5 Multivan 2004-2009
Features :
Android 7.1.1 Neg Quad Core(64-bit Operating System )
Streamlined and Sleek Design
Tire Pressure Monitoring is Available
Screen Mirroring Function
Supports OBD2 Function
Supports DAB+ Tuner
WIth CANbus
Supports Full HD 1920*1080 Format
Faster Wireless with Built-in WiFi
Online Maps,Free to Navigate
Bluetooth 4.0
Built - in WIFI modem
3G internet support

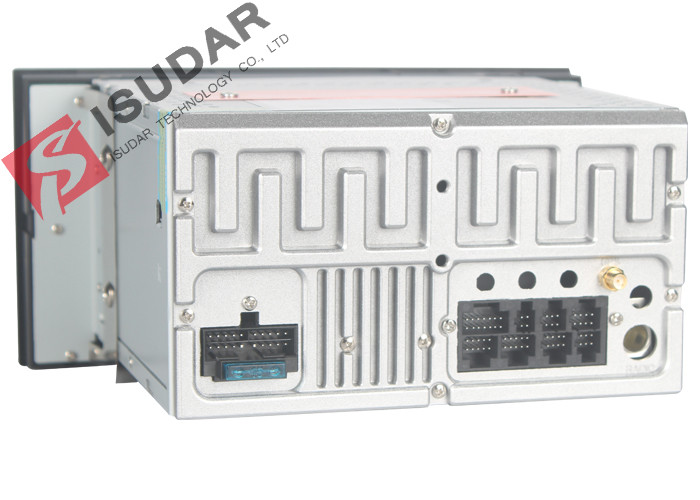

Efficient Heat Dissipation
Various Kinds of Themes are Available
Optional Accessories to perfect your user Experience
Descriptions :
1. Google Android7.1.1 Operation System ,ARM Cortex A9 Quad-Core 1.6GHz CPU, Samsung DDR3 2GB, 16GB Internal Memory
2. 7 inch Multi- point capacitive Touch screen,HD 1024*600 Resolution displaying screen
3. Built-in WiFi Modem
4. Support 3G Internet, support extral USB Dongle: WCDMA,EVDO,TD-SCDMA
5. Built-in Mirror link
6. Support Google Maps online Navigating
7. Support HD Videos up to 1920*1080 pixels, Photo up to 4096*4096 pixels
8. Support Bluetooth hands-free function, built-in microphone
9. Support A2DP Bluetooth, can play stereo music through Bluetooth from your Phone
10. RDS default
11.Support Rear View Camera input and reverse trigger Control
12. Built-in Car DVR System
13. Support DVB-T T2/MPEG2/MPEG4/ISDB-T Box input (TV box isn't included)
14. Support Steering Wheel Control
15. Support OBD
16. Support DAB+ tuner
17. Support Dual zone function
Parameters :
| Voltage | 10.5-15.5V |
| Current | <6MA |
| Operating temperature | -30 degrees to 75 degrees |
| Platform | ROCKCHIP RK-PX3 Android 7.1.1 |
| Dominant frequency | Quad-Core 1.6GB |
| RAM | 2G |
| ROM | 16G |
| Pixels | 1024*600 |
| Touch screen | 1024*600 |
| MCU | STM32F091VCT |
| DVD Chip | Sunplus SPHE8202VGQ |
| Bareheaded | HITACHI 1200XH |
| Navigation Chip | MG1613S |
| Radio Chip | NXP6686 |
| Bluetooth Chip | GOC-MD-725 |
| Amplifier function Chip | TDA7388 |
| TV mode | CMMB/ISDB/DVB-T/DVB-T2/ATSC |
| Fat format mobile hard-disk | MAX 1TB(Need external power) |
| USB device | Support |
| TF/SD card | MAX 32 GB |
| Video input | 1 Route |
| Audio input | 2 Route |
| Rear view camera video input | 1 Route |
| USB DVR video input | Support |
| Video output | 1 Route (DVD Video output) |
| Audio output | 4 Route |
| Subwoofer output | Support |
| Europe Digital Audio Broadcasting (DAB) | USB |
