Product Details:
|
|
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | ISUDAR |
| Certification: | CE, ROHS |
| Model Number: | NA03W6SU0703 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 4pcs |
| Price: | negotiation |
| Packaging Details: | In carton |
| Delivery Time: | 3-4days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 300pcs/day |
|
Detail Information |
|||
| Car Maker: | Suzuki | Name: | Car Radio |
|---|---|---|---|
| Sukuzi Model: | SWIFT | Operating System: | WINCE MTK 3360 |
| Resolution: | 800*400 | Item Weight: | 3.5KGS |
| High Light: | bluetooth navigation car stereo,touch screen car head unit |
||
Product Description

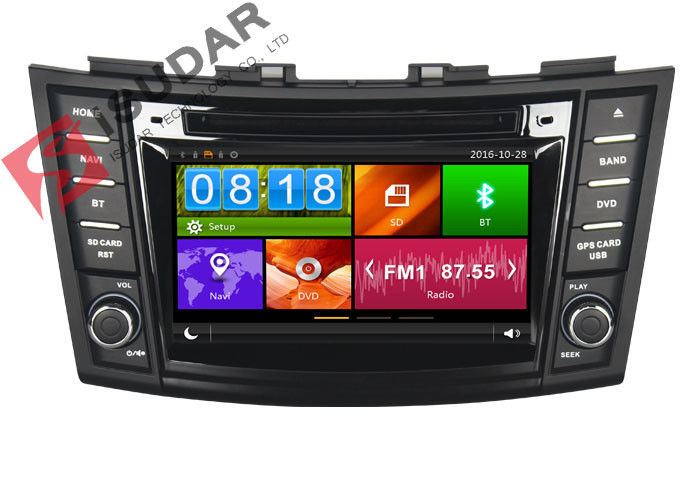

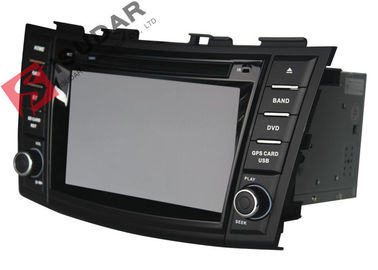

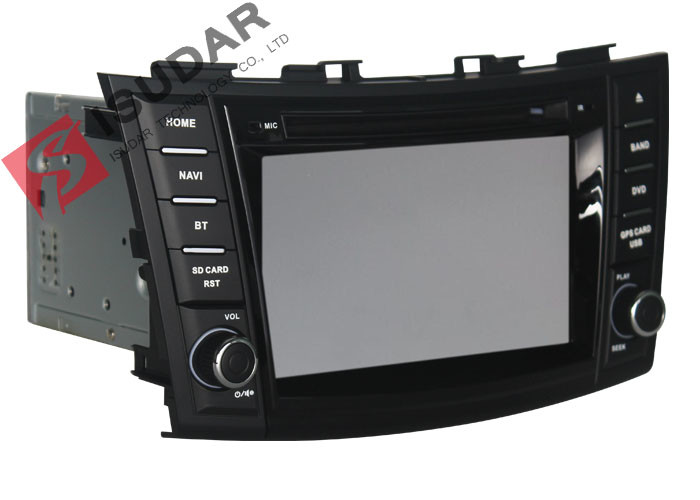

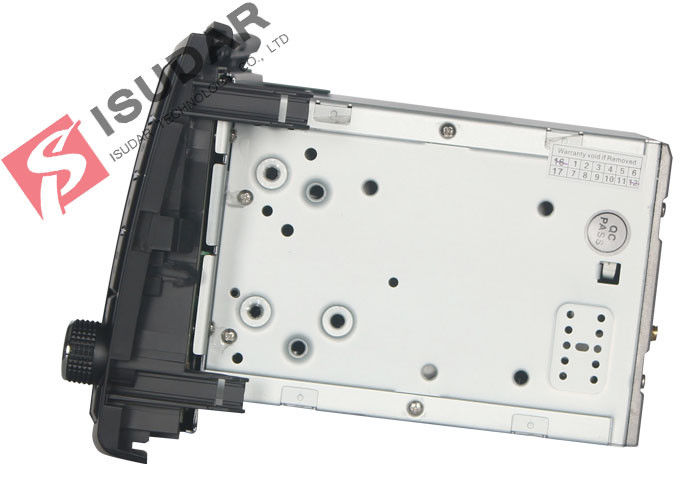

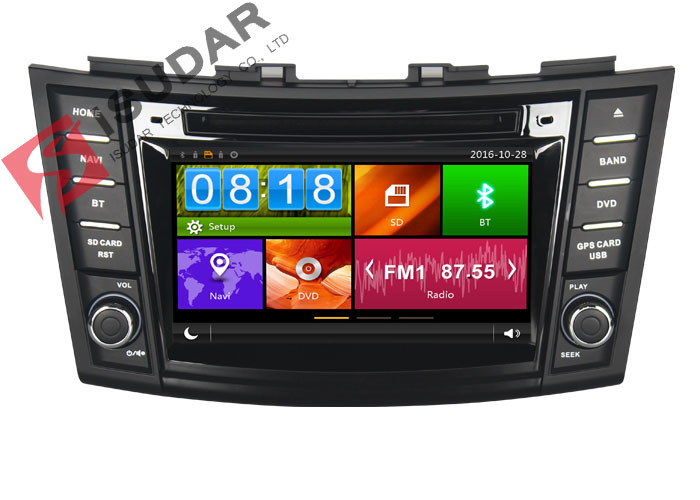

Wince MTK 3360 7" Car DVD Player GPS Navigation for SUZUKI SWIFT 2011 with 3G BT Radio Stereo TPMS DVR Back camera
Suit for :
SUZUKI SWIFT 2011-
Selling Point:
Classic Design And Dynamic User interface
High Transmittance & Anti-dazzle Touch Screen
Screen Mirroring Function
Steering Wheel Control Ready(CANbus Box Provided)
Improved Compatability & Installation
Rectifier Filter For Clearer Scene
Quicker & Smoother(Processor:Cortex A7)
Supports Phonebook Contacts Search
Region Free DVD Player
Efficient Heat Dissipation
Optional Accessories to perfect your user Experience
Other Features that Enrich your In-Car Entertainment
1. Built-in Radio Tuner (RDS Enabled)
(18 FM and 12 AM stations Preset)
2. Built-in USB & SD Port
32GB (the max files in the USB & SD card should be within 4GB)
3. AUX IN & AV OUT
Supports System: NTSC, PAL
4. 4 *45W
Pop, Rock, Jazz, Classic, Customize, Cinema, Soft, Heavy Metal, Standard
5. 800*480HD Resolution
Resolution: 800*480
6. Supports Multiple Languages
Simplified Chinese, English, Traditional Chinese, Russian, French, Spanish, German, Portuguese, Thai, Arabic, Polish and Japanese.
|
Product |
Digital TV | Option |
| Ipod | Default | |
| Handwriting input | Default | |
| CD/DVD Disc playback | Default | |
| 3G | Default(need 3G USB dongle to connect) | |
| Game function | Default | |
| USB/SD | Default(Audio/Video) | |
| Bluetooth | Default(support HFP,HSP,FTP,OBE,OPP,SPP,A2DP) | |
| Bluetooth phone | Default | |
| Bluetooth phone book | Default | |
| Bluetooth music | Default | |
| Music player | Default(Support lyrics display) | |
| 1080P HD Video playback | Default | |
| Front camera | Default | |
| Virtual 10-Disc | Default | |
| Radio | Default(European/Russia/Japan/America and so on) | |
| RDS | Default | |
| EQ to adjust | Default | |
| GPS Navigation | Default(Support IGO/Navitel etc) | |
| Multiple language | Default | |
| Positioning system | Support | |
| Cold start reversing | Default | |
| Rear view camera reversing | Default | |
|
Hardware parameters |
Voltage | 10.5-15.5V |
| Current | <3MA | |
| Operating temperature | -30 degrees to 80 degrees | |
| Platform | Windows CE 6.0 | |
| Dominant frequency | 800MHZ | |
| RAM | DDR 512MB | |
| Pixels | 800*480 | |
| Touch screen | Capacitive | |
| MCU | MN101EF51A | |
| DVD Chip | Sunplus SPHE820VGQ | |
| Bareheaded | Sanyo bareheaded | |
| Navigation Chip | MT3336N | |
| Radio Chip | SI4754 | |
| Bluetooth Chip | MT6622N | |
| Amplifier function Chip | TDA7388 | |
| TV mode | CMMB/ISDB/DVB-T/DVB-T2/ATSC | |
|
Input output port |
Fat format mobile hard-disk | Support |
| USB device | Support | |
| TF/SD card | MAX 32 GB | |
| Video input | 1 Route | |
| Audio input | 2 Route | |
| Video output | 2 Route | |
| Front video input | 1 Route | |
| Back video output | 1 Route | |
| Audio output | 4 Route | |
| Intermediate output | 1 Route | |
| Subwoofer output | 1 Route |
