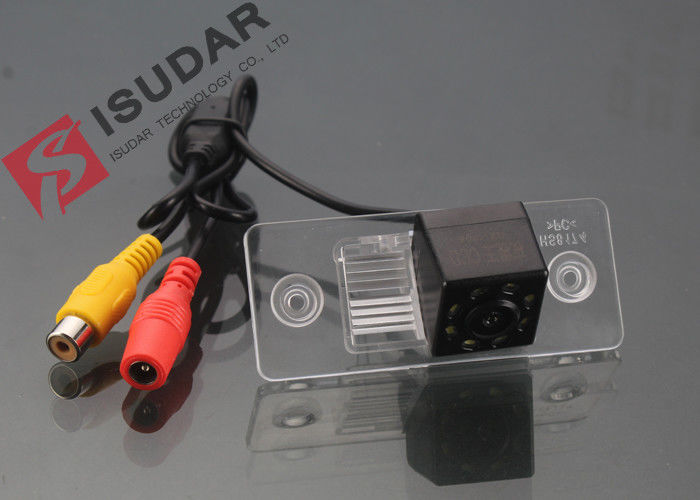

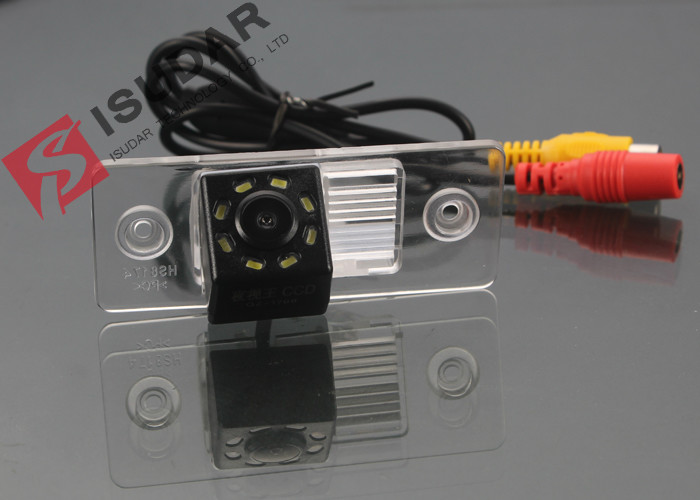

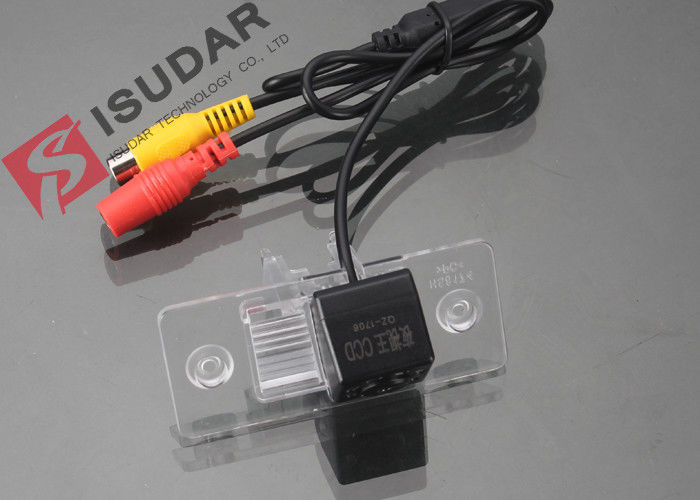

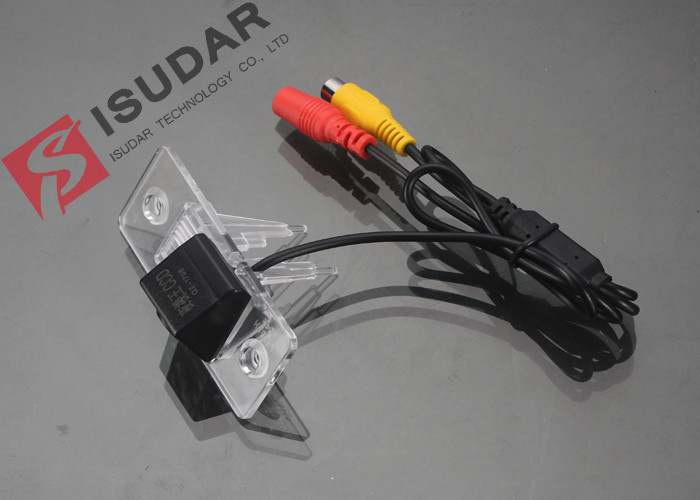

Glass Lens VW Tiguan Backup Camera , VW Touareg Reversing Camera 170 Degree

Product Details:
Place of Origin: CHINA
Brand Name: ISUDAR
Certification: CE, ROHS
Model Number: CA1300VW0014
Payment & Shipping Terms:
Minimum Order Quantity: 4pcs
Price: negotiation
Packaging Details: In carton
Delivery Time: 3-4days
Payment Terms: T/T, Western Union
Supply Ability: 1000pcs/day

Detail Information

Item Type: Car Reverse Camera Car Maker: Volkswagen
Wire Or Wireless: Wired Material Type: ABS
Lens Material: Glass Degree: 170 Degree
High Light:

rear view parking camera


night vision backup camera

Product Description

High Quality HD Car Parking Reversing Backup Camera for VW Touareg Tiguan Passat POLO GP Polo Sedan Santana




1. Special design to replace the original car license plate light, perfect match, no damage to the installation.
2. Low light perfect night vision.
3. Can help avoid accidents, durability is good.
4. Switching power supply Low power circuit design, small heat, stable work.
5. Waterproof rating IP67.
6. 170 degrees large wide angle.
7. Each of our products need to pass the vibration test, aging treatment, waterproof test, high and low temperature test UV test, air tightness test and a series of vehicle standard test.


Technical Parameters:

Image sensors: HD Color COMS PC3089
Resolution(TV Lines): 500
Effective pixels: 756 * 504
TV standard: NTSC / PAL (Optional)
Lens angle (Deg.): 170°
Minimum illumination: 0.3 Lux
Video output: 1.0Vp-p, 75Ohm, RCA male
AGC / BLC / White balance: Auto
Power supply: DC 12V
Power: <1W
Waterproof grade: IP67
Operating temperature (Deg.C): -30~+70(RH95%MAX.)


Image sensor PC7070
Effective pixels 720*480 pixel
Video output 1.0VP-P,75 OHM
Scan System 2:1 interlace
Minimum illumination 0.01 Lux/F=1.2(0 Lux with IR on)
Operating Temperature -20℃~+75℃,RH95% MAX
Storage temperature -40℃ - 85℃,RH 95% MAX
Light perception area 3.584mm*2.688mm
Gamma coefficient 0.45
View Angle Level: 135° / Diagonal 170°
Horizontal Resolution 480 TV lines
Electronic Shutter 1-1/10000
White balance Auto
Waterproof IP67/68
Power supply DC 12V

Glass Lens VW Tiguan Backup Camera , VW Touareg Reversing Camera 170 Degree 0


Glass Lens VW Tiguan Backup Camera , VW Touareg Reversing Camera 170 Degree 1
