Product Details:
|
|
Place of Origin: | CHINA |
---|---|
Brand Name: | ISUDAR |
Certification: | CE ,ROHS |
Model Number: | NA02A7JP1012 |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 4pcs |
Price: | negotiation |
Packaging Details: | In carton |
Delivery Time: | 3-4days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 300pcs/day |
Detail Information |
|||
Display Size: | 10.1 Inch | Car Model: | Jeep |
---|---|---|---|
Name: | Car Mulitimedia System | Android System Version: | Android 7.1.1 |
CPU: | ARM Cortex A9 Quad-Core 1.6GHz | Steering Wheel Control: | Support |
Highlight: | car navigation & entertainment system,car multimedia navigation system |
Product Description

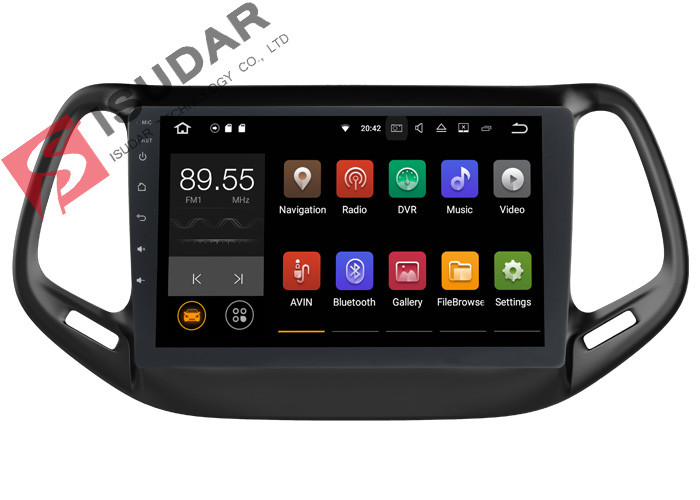

Android 7.1.1 10.1 Inch Car Navigation System Without DVD Player For Jeep compass 2017 With Canbus + Quad-Core 1.6GHZ CPU + DDR3 2GB Flash + 16 GB Memory + 1024*600 HD Screen + Capacitive Screen + Wifi + GPS Navigation + iPhone/Android Mobile Phone Mirror link + Bluetooth + FM/AM + RDS + USB DVR function + OBD 2 Funtion + Europe DAB Function + 1080P Vedio Play
Suit For :

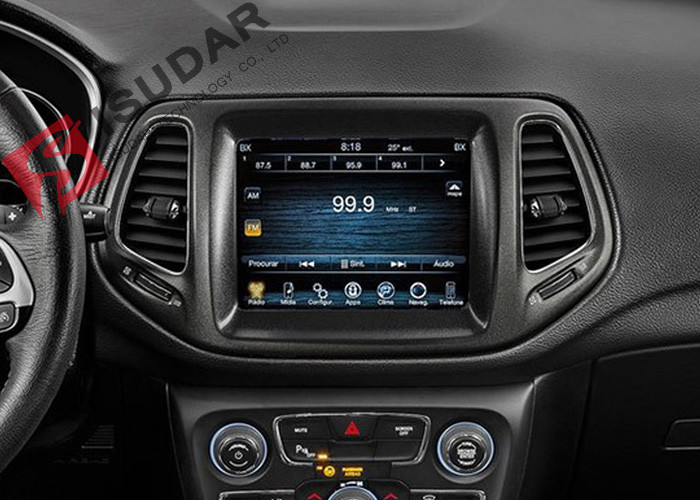

Jeep Compass 2017
Descriptions :
Android 7.11 Operating System
CPU Processor: RK3188 1.6GHz Cortex A9 Quad-Core
RAM Memory: DDR3 2GB
iNand Momery:16GB
Support HD 1080p Videos
Car Opening Logos is Optional. Customers can also choose pictures as opening logos from their SD card in factory setting
Live Wallpapers Selectable. Customers can also set their favorite pictures as background
Steering Wheel Control Function
Capacitive 1024*600 Touch Screen
Headrest Display synchronization
Support USB DVR input
Support Rearview Camera input
Original LEDs button indicator.
Support OBD2 (not included).
Support Digital TV: ISDB-T, ATSC, DVB-T or DVB-T2 (Optional, not Included)
Built-in WiFi function
Support 3G Modem to surf the internet
With mirrorlink for iphone and android mobile to connect
Dual zone
Support DAB+ tuner, but need connect external DAB+ tuner . and in the future, internal DAB +tuner will be realized
Technical Specs :
Screen Type | All touch panel , without Physical button |
Voltage | 10.5-15.5V |
Current | <6MA |
Operating temperature | -30 degrees to 75 degrees |
Platform | ROCKCHIP RK-PX3 Android 7.1.1 |
Dominant frequency | Quad-Core 1.6GB |
RAM | 2G |
ROM | 16G |
Pixels | 1024*600 |
Touch screen | Capacitive |
MCU | STM32F091VCT |
Navigation Chip | MG1613S |
Radio Chip | NXP6686 |
Bluetooth Chip | GOC-MD-725 |
Amplifier function Chip | TDA7388 |
TV mode | CMMB/ISDB/DVB-T/DVB-T2/ATSC |
Fat format mobile hard-disk | MAX 1TB(Need external power) |
USB device | Support |
TF/SD card | MAX 32 GB |
Video input | 1 Route |
Audio input | 2 Route |
Rear view camera video input | 1 Route |
USB DVR video input | Support |
Video output | 1 Route (DVD Video output) |
Audio output | 4 Route |
Subwoofer output | Support |
Europe Digital Audio Broadcasting (DAB) | USB |
